40MP025M6FA6 Metric Pulleys

40MP025M6FA6, A 6A16M040DF6006

Product Details for 40MP025M6FA6

Comparable to: 40MP025M6FA6, A 6A16M040DF6006,

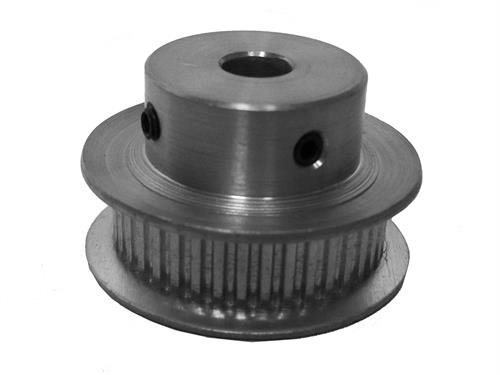

40MP025M6FA6, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum

Specifications

Product Number 40MP025M6FA6
Teeth 40
Tooth Style MXL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Set Screw 2 x M3 @ 90°
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 25.90
O.D. (mm) 25.40
Flange Diameter (mm) 30.70
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 19.20
Weight (lb) 0.07
List Price (1-9 Qty.) (USD) 10.18
Discount Price (10-24 Qty.) (USD) 9.42
Discount Price (25-49 Qty.) (USD) 6.87
Discount Price (50-99 Qty.) (USD) 6.11
Discount Price (100-249 Qty.) (USD) 5.6
Part Number Cross Reference 40MP025M6FA6, A 6A16M040DF6006,

Documentation

Download Catalog 2015_BBMAN_CATALOG_9.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40MP025M6FA6_REACH_cert
RoHS Certification 40MP025M6FA6_RoHS_cert
