40XL037M6A10, Timing Pulley

40XL037M6A10 - Aluminum Metric Pulleys

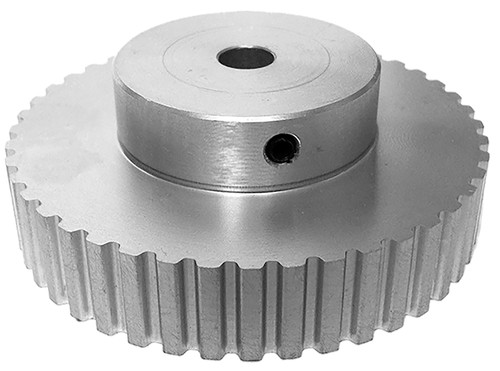

40XL037M6A10

Click to Enlarge

40XL037M6A10, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40XL037M6A10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40XL037M6A10
Teeth 40
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 10 mm Finished Bore
Bore (mm) 10.00
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.526
Pulley Belt Width (mm) 9.50
Unit System Inch
P.D. (mm) 65.00
O.D. (mm) 64.20
Face Width (mm) 25.40
Overall Length (mm) 9.50
Hub Diameter (mm) 38.00
MOQ 1
Weight (lb) 0.35
Part Number Cross Reference A AMNF, A6A3M40NF09510, 40XL037M6A10
Set Screw Quantity 2
