42-2P09-6FA3, Timing Pulley

42-2P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 42-2P09-6FA3

Comparable to: 42-2P09-6FA3, A 6A51-042DF0908, A6A51-042DF0908, 2MR-42S-09, 78426061, TP2A3W9-

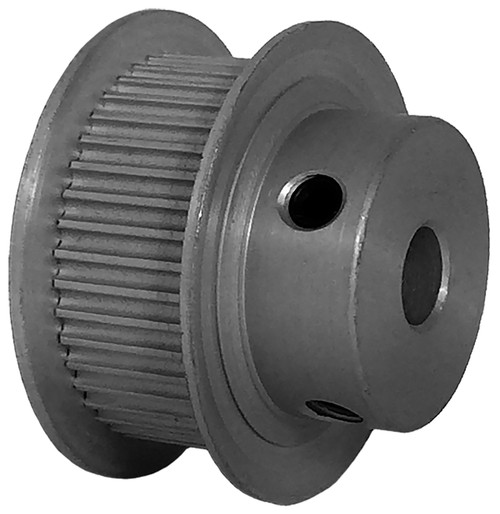

Click to Enlarge

42-2P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 42-2P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 42-2P09-6FA3
Teeth 42
Tooth Style GT 2mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.053
Outside Diameter (in) 1.033
Flange Diameter (in) 1.260
Face Width (in) 0.530
Overall Length (in) 0.843
Hub Diameter (in) 0.806
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.410
Unit System Inch
Max. Bore (in) 0.556
Weight (lb) 0.06
Part Number Cross Reference 42-2P09-6FA3, A 6A51-042DF0908, A6A51-042DF0908, 2MR-42S-09, 78426061, TP2A3W9-
