42-8MX62-6FS10, Timing Pulley

42-8MX62-6FS10

Click to Enlarge

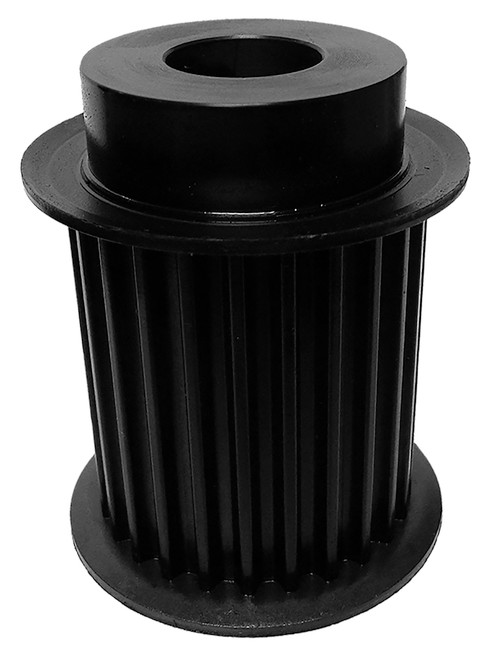

42-8MX62-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 42-8MX62-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	42-8MX62-6FS10
Teeth	42
Tooth Style	8MX
For Belt Width (mm)	62.00
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	4.211
Outside Diameter (in)	4.148
Flange Diameter (in)	4.687
Face Width (in)	2.906
Overall Length (in)	3.625
Hub Diameter (in)	3.758
Min. Bore (in)	1
Pulley Belt Width (in)	2.670
Unit System	Inch
P.D. (mm)	107.00
O.D. (mm)	105.40
MOQ	1
Weight (lb)	11.04
Part Number Cross Reference	PB8MX-42S-62, PB8MCS-42-62, 42G-8M-62-MPB, 20839747, PB8MX-42S-62 MPB, 8MPC42S62MPB, 42-8MX62-6FS10, 481994, 42-8MX62-6FS10
