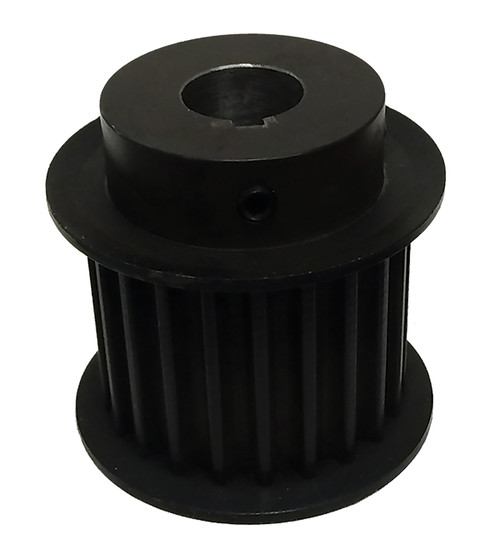

42-8MXF62X1, Timing Pulley

42-8MXF62X1 - Cast Iron Powerhouse® MX Pulleys

42-8MXF62X1

42-8MXF62X1 - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

42-8MXF62X1, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 42-8MXF62X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 42-8MXF62X1
Teeth 42
Tooth Style 8MX
For Belt Width (mm) 62.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Pitch Diameter (in) 4.211
Outside Diameter (in) 4.148
Flange Diameter (in) 4.690
Face Width (in) 2.906
Overall Length (in) 3.625
Min. Bore (in) 1
Unit System Inch
P.D. (mm) 107.00
O.D. (mm) 105.40
MOQ 1
Weight (lb) 4.50
Part Number Cross Reference 42-8MXF62X1, 42-8MXF62X1
Set Screw Quantity 2
