42T5-PS160A, Timing Pulley Stock

42T5-PS160A, A6A34M042T16, A 6A34M042T16, 42T5-PS-160

Product Details for 42T5-PS160A

Comparable to: A 6A34M042T16, A6A34M042T16, 42T5-PS-160, T542

Click to Enlarge

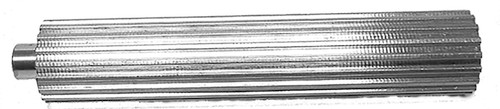

42T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 42T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 42T5-PS160A
Teeth 42
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 2.638
Outside Diameter (in) 2.598
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 67.00
O.D. (mm) 66.00
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 3.28
Part Number Cross Reference A 6A34M042T16, A6A34M042T16, 42T5-PS-160, T542
Shank Length (in) 0.8000
