42XL037-6A4, Timing Pulley

42XL037-6A4 - Aluminum Imperial Pitch Pulleys

42XL037-6A4

Click to Enlarge

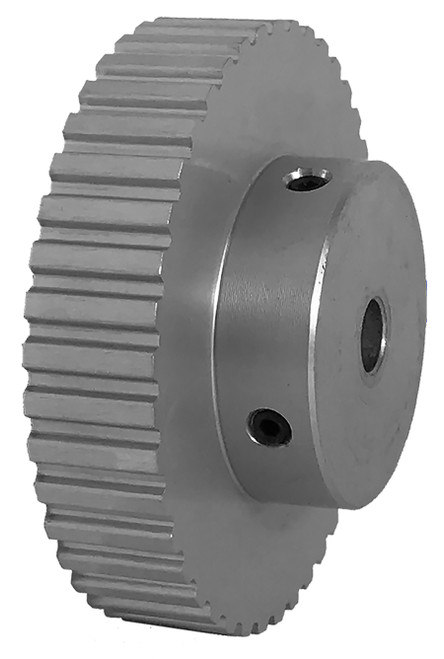

42XL037-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 42XL037-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 42XL037-6A4
Teeth 42
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.674
Outside Diameter (in) 2.654
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 68.00
O.D. (mm) 67.40
MOQ 1
Weight (lb) 0.41
Part Number Cross Reference A 6A3-42NF03710, A6A3-42NF03710, PB42XL037, 42XLB037, 42AXL037-5/16, 20182091, 113416, 42XL037, 42AXL037MPB, P42XL037A, 42XL037-6A4
Set Screw Quantity 2

Comparable to: A 6A3-42NF03710, A6A3-42NF03710, PB42XL037, 42XLB037, 42AXL037-5/16, 20182091, 113416, 42XL037, 42AXL037MPB, P42XL037A, 42XL037-6A4
