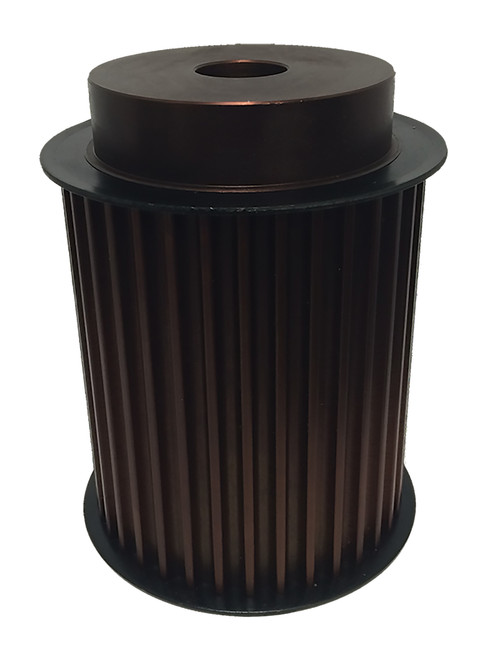

44-14M170-6FS16, Timing Pulley

44-14M170-6FS16 - Steel Powerhouse®HTD® Pulleys

44-14M170-6FS16

44-14M170-6FS16 - Steel Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

44-14M170-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 44-14M170-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-14M170-6FS16
Teeth 44
Tooth Style HTD14mm
For Belt Width (mm) 170.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1.500
Bore Description 1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 7.720
Outside Diameter (in) 7.610
Flange Diameter (in) 8.220
Face Width (in) 7.375
Overall Length (in) 7.375
Hub Diameter (in) 6.760
Min. Bore (in) 1.5
Unit System Inch
P.D. (mm) 196.00
O.D. (mm) 193.30
MOQ 1
Weight (lb) 75.70
Part Number Cross Reference P44-14M-170, 44-14M170-6FS16, 44-14M170-6FS16
