44-14P115-3535, Timing Pulley

44-14P115-3535

Click to Enlarge

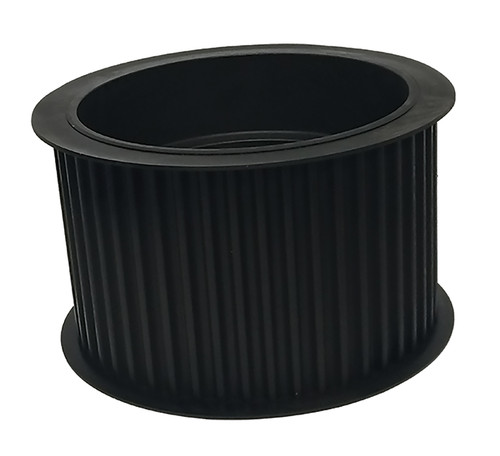

44-14P115-3535, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 44-14P115-3535 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	44-14P115-3535
Teeth	44
Tooth Style	14P
For Belt Width (mm)	115.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 3535 Bushing
Pitch Diameter (in)	7.720
Outside Diameter (in)	7.610
Flange Diameter (in)	8.395
Face Width (in)	5.250
Overall Length (in)	5.250
Min. Bore (in)	1.1875
Pulley Belt Width (in)	4.930
Unit System	Inch
Bushing	3535
P.D. (mm)	196.00
O.D. (mm)	193.30
MOQ	1
Weight (lb)	29.24
Part Number Cross Reference	P44-14MGT-115, B4414M115TL, P44-14M-115-3535, 20182815, P44-14M-115-3535 HT250 SPKT, P4414M115TL, 44-14P115-3535, 114522, 44-14P115-3535
