44-3M06M6A6, Timing Pulley

44-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys

44-3M06M6A6

Click to Enlarge

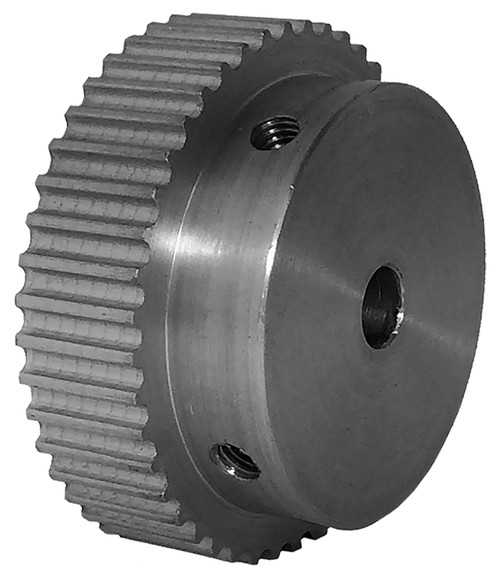

44-3M06M6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-3M06M6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-3M06M6A6
Teeth 44
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.654
Outside Diameter (in) 1.624
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 42.00
O.D. (mm) 41.30
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 33.00
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A23M044NF0606, A6A23M044NF0606, 44-3M06M6A6, 44-3M06M6A6
Set Screw Quantity 2
