44-5P09-6A4, Timing Pulley

44-5P09-6A4 - Aluminum Powerhouse® Pulleys

Product Details for 44-5P09-6A4

Comparable to: 44-5P09-6A4, A 6A55-044NF0916, A6A55-044NF0916, P44-5MGT-09AL, 78450944

Click to Enlarge

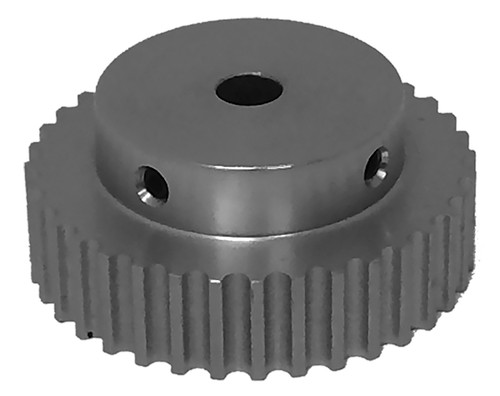

44-5P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 44-5P09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-5P09-6A4
Teeth 44
Tooth Style GT 5mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.757
Outside Diameter (in) 2.712
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.40
Part Number Cross Reference 44-5P09-6A4, A 6A55-044NF0916, A6A55-044NF0916, P44-5MGT-09AL, 78450944
