44-5P25-1108, Timing Pulley

44-5P25-1108 - Steel Powerhouse® Pulleys

44-5P25-1108

Click to Enlarge

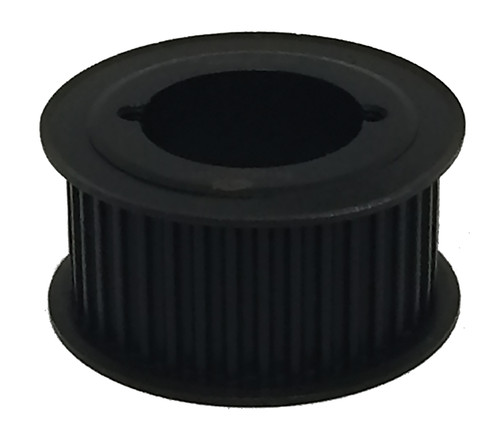

44-5P25-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 44-5P25-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-5P25-1108
Teeth 44
Tooth Style 5P
For Belt Width (mm) 25.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.757
Outside Diameter (in) 2.712
Flange Diameter (in) 3.094
Face Width (in) 1.290
Overall Length (in) 1.290
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
Bushing 1108
P.D. (mm) 70.00
O.D. (mm) 68.90
MOQ 1
Weight (lb) 1.39
Part Number Cross Reference P44-5MGT-25, P44-5M-25-1108 HT250 SPKT, 44-5P25-1108, 112486, 44-5P25-1108
