44-8P85-2012, Timing Pulley

44-8P85-2012 - Cast Iron Powerhouse® Pulleys

44-8P85-2012

Click to Enlarge

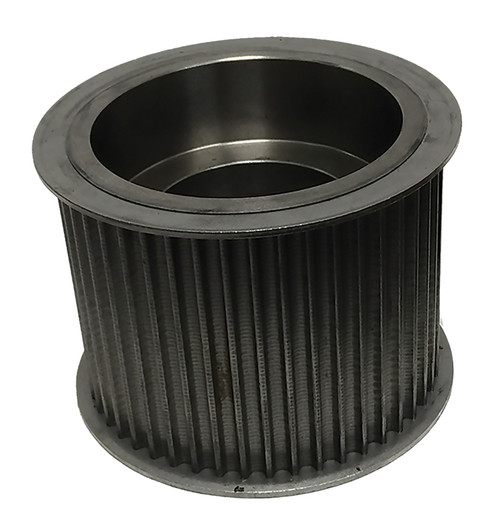

44-8P85-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 44-8P85-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44-8P85-2012
Teeth 44
Tooth Style 8P
For Belt Width (mm) 85.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.411
Outside Diameter (in) 4.357
Flange Diameter (in) 4.764
Face Width (in) 3.750
Overall Length (in) 3.750
Min. Bore (in) 0.5
Pulley Belt Width (in) 3.500
Unit System Inch
Bushing 2012
P.D. (mm) 112.00
O.D. (mm) 110.70
MOQ 1
Weight (lb) 5.67
Part Number Cross Reference P44-8MGT-85, B448M85TL, P44-8M-85-2012, 20182822, P44-8M-85-2012 HT250 SPKT, P448M85TL, 44-8P85-2012, 114504, 44-8P85-2012
