44HQ200, Timing Pulley

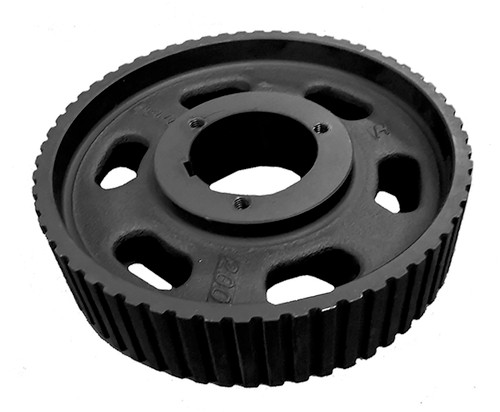

44HQ200 - Cast Iron Imperial Pitch Pulleys

44HQ200

44HQ200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

44HQ200, Timing Pulley, Cast Iron

Learn more about 44HQ200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44HQ200
Teeth 44
Tooth Style H
For Belt Width (in) 2.0000
Type E1F
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 7.003
Outside Diameter (in) 6.949
Flange Diameter (in) 7.250
Face Width (in) 2.500
Overall Length (in) 2.781
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 178.00
O.D. (mm) 176.50
MOQ 1
Weight (lb) 15.89
Part Number Cross Reference 44HQ200, 44HQ200, 44HQ200
