44LP075, Timing Pulley

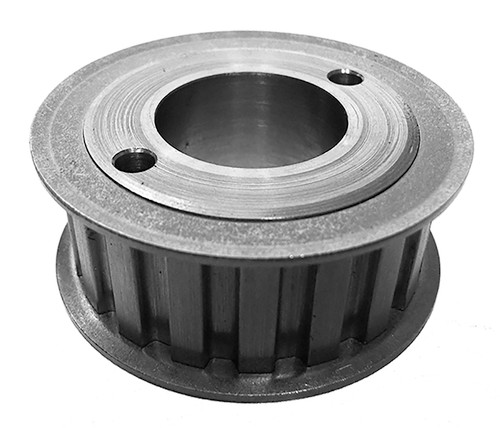

44LP075 - Cast Iron Imperial Pitch Pulleys

44LP075

44LP075 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

44LP075, Timing Pulley, Cast Iron

Learn more about 44LP075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44LP075
Teeth 44
Tooth Style L
For Belt Width (in) 0.7500
Type 7
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 5.252
Outside Diameter (in) 5.222
Flange Diameter (in) 5.500
Face Width (in) 1.000
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 133.00
O.D. (mm) 132.60
MOQ 1
Weight (lb) 4.90
Part Number Cross Reference 44LP075, 44LP075, 44LP075
