44LP100, Timing Pulley

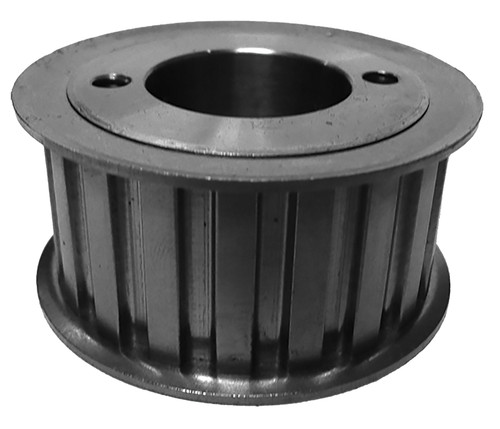

44LP100 - Cast Iron Imperial Pitch Pulleys

44LP100

44LP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

44LP100, Timing Pulley, Cast Iron

Learn more about 44LP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44LP100
Teeth 44
Tooth Style L
For Belt Width (in) 1.0000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 5.252
Outside Diameter (in) 5.222
Flange Diameter (in) 5.500
Face Width (in) 1.250
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 133.00
O.D. (mm) 132.60
MOQ 1
Weight (lb) 5.90
Part Number Cross Reference 44LP100, 44LP100, 44LP100
