44XL037-6A4 - Aluminum Imperial Pitch Pulleys

44XL037-6A4 - Aluminum Imperial Pitch Pulleys

Product Details for 44XL037-6A4

Comparable to: 44XL037-6A4, A 6A3-44NF03710, A6A3-44NF03710, PB44XL037, 78230211, 44XLB037, 44AXL037-5/16, 20182094, 113417, 44XL0

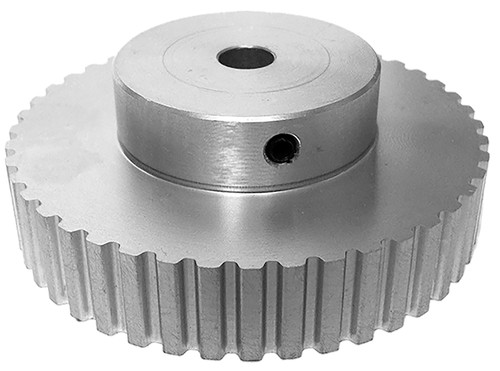

44XL037-6A4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Our 44XL037-6A4 Aluminum Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 44XL037-6A4
Teeth 44
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.801
Outside Diameter (in) 2.781
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.3125
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.42
Part Number Cross Reference 44XL037-6A4, A 6A3-44NF03710, A6A3-44NF03710, PB44XL037, 78230211, 44XLB037, 44AXL037-5/16, 20182094, 113417, 44XL0
