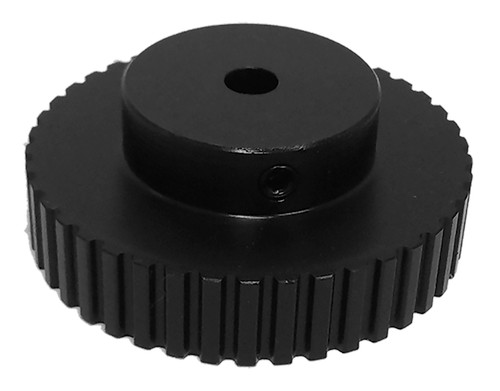

44XL037-6S4, Timing Pulley

44XL037-6S4 - Steel Imperial Pitch Pulleys

Product Details for 44XL037-6S4

Comparable to: 44XL037-6S4, 44XLB03

44XL037-6S4, Timing Pulley, Steel, Black Oxide,

Learn more about 44XL037-6S4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 44XL037-6S4
Teeth 44
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.801
Outside Diameter (in) 2.781
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Set Screw 2 x 1/4-20 @ 90°
Min. Bore (in) 0.3125
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.38
Part Number Cross Reference 44XL037-6S4, 44XLB03
