45-14MX20-3020, Timing Pulley

45-14MX20-3020 - Cast Iron Powerhouse® MX Pulleys

45-14MX20-3020

Click to Enlarge

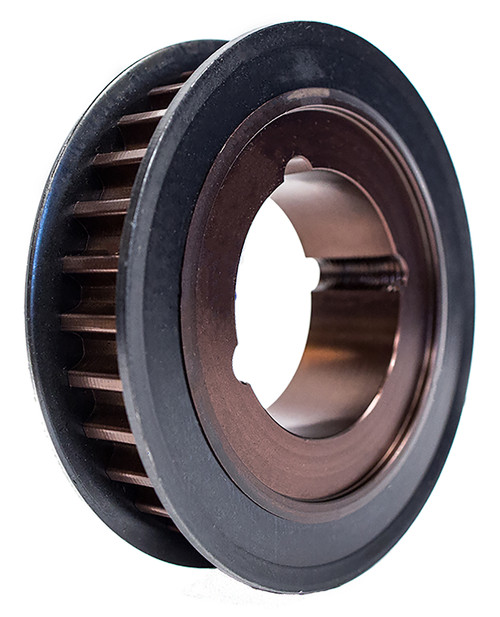

45-14MX20-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 45-14MX20-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-14MX20-3020
Teeth 45
Tooth Style 14MX
For Belt Width (mm) 20.00
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 7.895
Outside Diameter (in) 7.785
Flange Diameter (in) 8.395
Face Width (in) 1.359
Overall Length (in) 2.000
Min. Bore (in) 0.875
Pulley Belt Width (in) 1.040
Unit System Inch
Bushing 3020
P.D. (mm) 200.00
O.D. (mm) 197.70
MOQ 1
Weight (lb) 13.11
Part Number Cross Reference 14MX-45S-20, 14MX45S20-3020, B14MCS-45-20, 45G-14M-20-3020, 20839835, 14MX-45S-20-3020 HT500 SPKT, 14MPC45S20, 14MX45S20-3020, 45-14MX20-3020, 482031, 45-14MX20-3020

Comparable to: 14MX-45S-20, 14MX45S20-3020, B14MCS-45-20, 45G-14M-20-3020, 20839835, 14MX-45S-20-3020 HT500 SPKT, 14MPC45S20, 14MX45S20-3020, 45-14MX20-3020, 482031, 45-14MX20-3020
