45-3P09-6A4, Timing Pulley

45-3P09-6A4

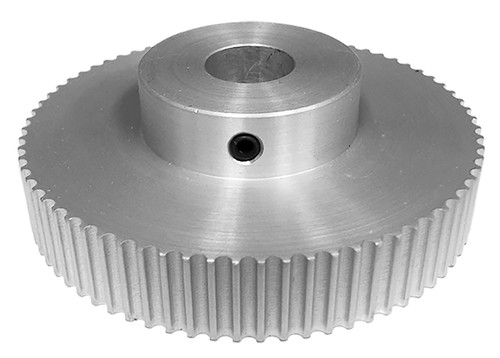

Click to Enlarge

45-3P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45-3P09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	45-3P09-6A4
Teeth	45
Tooth Style	3P
For Belt Width (mm)	9.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.313
Bore Description	5/16 Inch Finished Bore
Pitch Diameter (in)	1.692
Outside Diameter (in)	1.662
Face Width (in)	0.500
Overall Length (in)	0.875
Hub Diameter (in)	1.250
Min. Bore (in)	0.3125
Unit System	Inch
P.D. (mm)	43.00
O.D. (mm)	42.20
MOQ	1
Weight (lb)	0.16
Part Number Cross Reference	A 6A53-045NF0910, A6A53-045NF0910, 3MR-45S-09 6, TP3A3H9-45, 45-3P09-6A4, 45-3P09-6A4
Set Screw Quantity	2
