45-3P15-6FA3, Timing Pulley

45-3P15-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 45-3P15-6FA3

Comparable to: 3MR-45S-15, 78436040, 45-3GT15-1A X 1/4, 45-3P15-6FA3, 21071087

Click to Enlarge

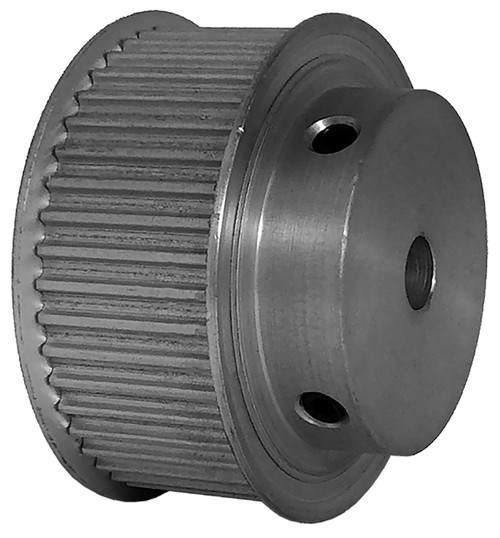

45-3P15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45-3P15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-3P15-6FA3
Teeth 45
Tooth Style 3P
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.692
Outside Diameter (in) 1.662
Flange Diameter (in) 1.775
Face Width (in) 0.742
Overall Length (in) 1.069
Hub Diameter (in) 1.250
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.636
Unit System Inch
MOQ 1
Weight (lb) 0.20
Part Number Cross Reference 3MR-45S-15, 78436040, 45-3GT15-1A X 1/4, 45-3P15-6FA3, 21071087
Set Screw Quantity 2
