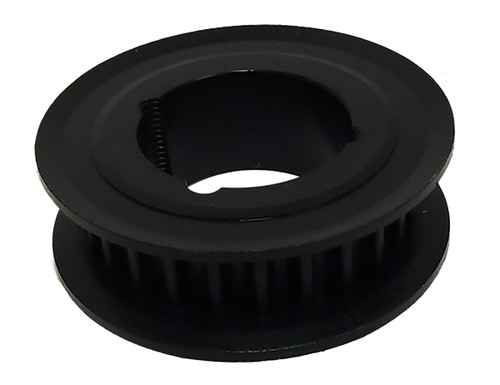

45-8MX12-2012, Timing Pulley

45-8MX12-2012 - Cast Iron Powerhouse® MX Pulleys

45-8MX12-2012

Click to Enlarge

45-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 45-8MX12-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45-8MX12-2012
Teeth 45
Tooth Style 8MX
For Belt Width (mm) 12
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.511
Outside Diameter (in) 4.448
Flange Diameter (in) 5.005
Face Width (in) 0.850
Overall Length (in) 1.250
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 2012
P.D. (mm) 115.00
O.D. (mm) 113.00
MOQ 1
Weight (lb) 2.88
Part Number Cross Reference 8MX-45S-12, B8MCS-45-12, 45-8MX12-2012
