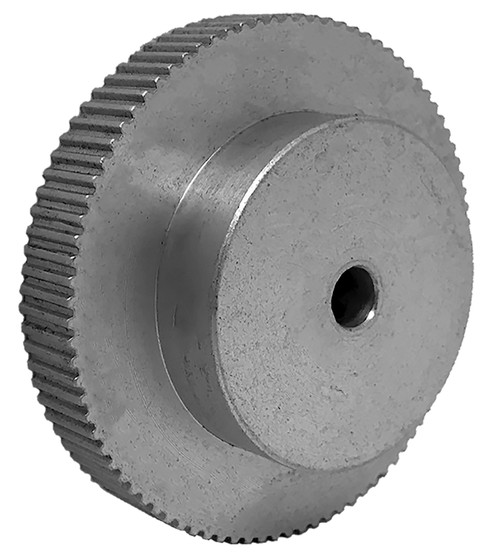

45LT187-6A3, Timing Pulley

45LT187-6A3 - Aluminum Imperial Pitch Pulleys

45LT187-6A3

Click to Enlarge

45LT187-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45LT187-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45LT187-6A3
Teeth 45
Tooth Style LT
For Belt Width (in) 0.1875
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.169
Outside Diameter (in) 1.149
Face Width (in) 0.750
Overall Length (in) 0.796
Hub Diameter (in) 0.796
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 30.00
O.D. (mm) 29.20
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A6-45NF01808, A6A6-45NF01808, 45LT-187 X 1/4-6, 45M187-2A X 1/4, 45LT187-6A3, 45LT187-6A3
Set Screw Quantity 2
