45LT187-6FA3, Timing Pulley

45LT187-6FA3

Click to Enlarge

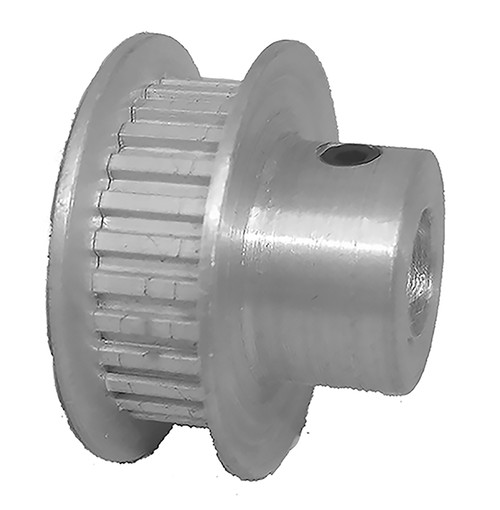

45LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 45LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	45LT187-6FA3
Teeth	45
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.169
Outside Diameter (in)	1.149
Flange Diameter (in)	1.340
Face Width (in)	0.340
Overall Length (in)	0.656
Hub Diameter (in)	0.884
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.220
Unit System	Inch
P.D. (mm)	30.00
O.D. (mm)	29.20
MOQ	1
Weight (lb)	0.07
Part Number Cross Reference	A 6A6-45DF01808, A6A6-45DF01808, 45LT-187 X 1/4-6F, PT045C08L02T, 45M187-1A X 1/4, 45LT187-6FA3, 45LT187-6FA3
Set Screw Quantity	2
