45V1180E, V-Belt Pulley

45V1180E, 5V11.8-4-E, 20180692, 5V1184, 4-5V11.8, 4/5V1180E

45V1180E

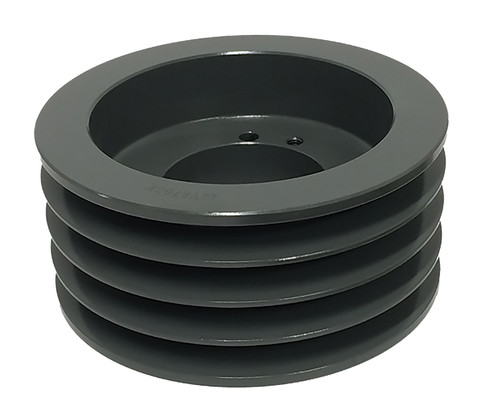

45V1180E, V-Belt Pulley, Cast Iron

Learn more about 45V1180E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45V1180E
Type B-2
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 11.700
Outside Diameter (in) 11.800
Face Width (in) 3.063
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 33.00
Part Number Cross Reference QD4/5V11.80, 45V1180E, 5V11.8-4-E, 20180692, 4-5V11.80-E SHEAVE, 5V1184, 4-5V11.80, 45V1180E, 455318, 45V1180E
Grooves 4

Related Products

Comparable to: QD4/5V11.80, 45V1180E, 5V11.8-4-E, 20180692, 4-5V11.80-E SHEAVE, 5V1184, 4-5V11.80, 45V1180E, 455318, 45V1180E
