45V1870E, V-Belt Pulley

45V1870E, 5V18.7-4-E, 20180759, 5V1874, 4-5V18.7, 4/5V1870E

45V1870E

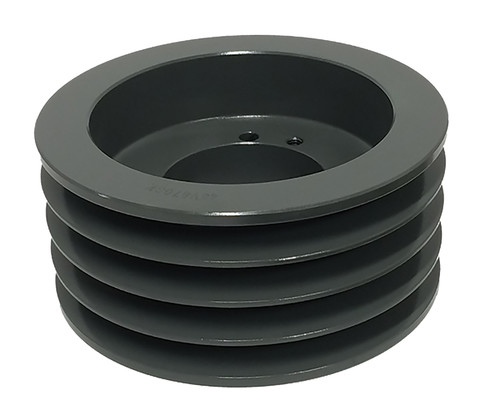

45V1870E, V-Belt Pulley, Cast Iron

Learn more about 45V1870E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 45V1870E
Type A-3
Material Cast Iron
Bore Type QD
Bore Description Bored for E Bushing
Pitch Diameter (in) 18.600
Outside Diameter (in) 18.700
Face Width (in) 3.063
Min. Bore (in) 0.875
Unit System Inch
Bushing E
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 53.60
Part Number Cross Reference QD4/5V18.70, 45V1870E, 5V18.7-4-E, 20180759, 4-5V18.70-E SHEAVE, 5V1874, 4-5V18.70, 45V1870E, 455324, 45V1870E
Grooves 4

Related Products

Comparable to: QD4/5V18.70, 45V1870E, 5V18.7-4-E, 20180759, 4-5V18.70-E SHEAVE, 5V1874, 4-5V18.70, 45V1870E, 455324, 45V1870E
