45V2360F, V-Belt Pulley

45V2360F

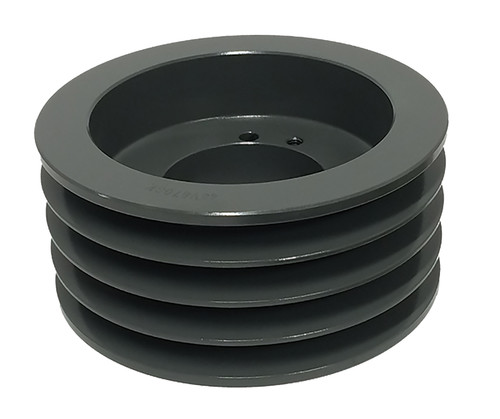

45V2360F, V-Belt Pulley, Cast Iron

Learn more about 45V2360F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	45V2360F
Type	C-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	23.500
Outside Diameter (in)	23.600
Face Width (in)	3.063
Min. Bore (in)	1
Unit System	Inch
Bushing	F
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	83.50
Part Number Cross Reference	QD4/5V23.60, 45V2360F, 5V23.6-4-F, 20180780, 4-5V23.60-F SHEAVE, 5V2364, 4-5V23.60, 45V2360F, 455326, 45V2360F
Grooves	4
