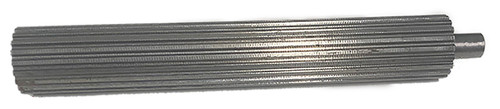

45XL-PS8S, Timing Pulley Stock

45XL-PS8S

45XL-PS8S, Timing Pulley Stock, Steel

Learn more about 45XL-PS8S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	45XL-PS8S
Teeth	45
Tooth Style	XL
Material	Steel
Pitch Diameter (in)	2.865
Outside Diameter (in)	2.845
Overall Length (in)	9.000
Unit System	Inch
Min. Usable Length (in)	8.000
P.D. (mm)	72.80
O.D. (mm)	72.30
MOQ	1
Weight (lb)	14.63
Part Number Cross Reference	A 6C2-45XL08, A6C2-45XL08, 45XL-PS-8S, XL 45 ST, 45XL-P-8S, 45XL-PS8S, 45XL-PS8S
Shank Length (in)	1.0000
