46T5-PS160A, Timing Pulley Stock

46T5-PS160A, A6A34M046T16, A 6A34M046T16, 46T5-PS-160

Product Details for 46T5-PS160A

Comparable to: A 6A34M046T16, A6A34M046T16, 46T5-PS-160, T546

Click to Enlarge

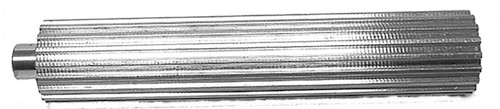

46T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 46T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 46T5-PS160A
Teeth 46
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 2.890
Outside Diameter (in) 2.850
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 73.40
O.D. (mm) 72.40
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 3.95
Part Number Cross Reference A 6A34M046T16, A6A34M046T16, 46T5-PS-160, T546
Shank Length (in) 0.8000
