48-14MX37-3020, Timing Pulley

48-14MX37-3020 - Cast Iron Powerhouse® MX Pulleys

Product Details for 48-14MX37-3020

Comparable to: 48-14MX37-3020, 14MX-48S-37, B14MCS-48-

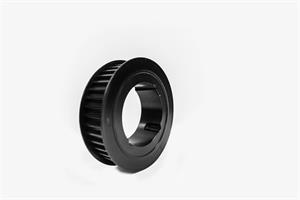

Click to Enlarge

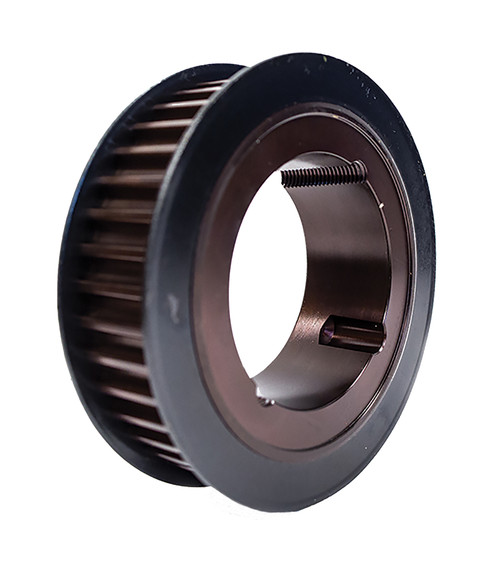

48-14MX37-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-14MX37-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 48-14MX37-3020
Teeth 48
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 8.421
Outside Diameter (in) 8.311
Flange Diameter (in) 8.941
Face Width (in) 1.750
Overall Length (in) 2.063
Min. Bore (in) 0.875
Pulley Belt Width (in) 1.740
Unit System Inch
Bushing 3020
Max. Bore (in) 3.250
Weight (lb) 20.20
Part Number Cross Reference 48-14MX37-3020, 14MX-48S-37, B14MCS-48-
