48-3M06M6A8 - Aluminum Powerhouse®HTD® Pulleys

48-3M06M6A8 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 48-3M06M6A8

Comparable to: 48-3M06M6A8, A 6A23M048NF0608, A6A23M048NF0608

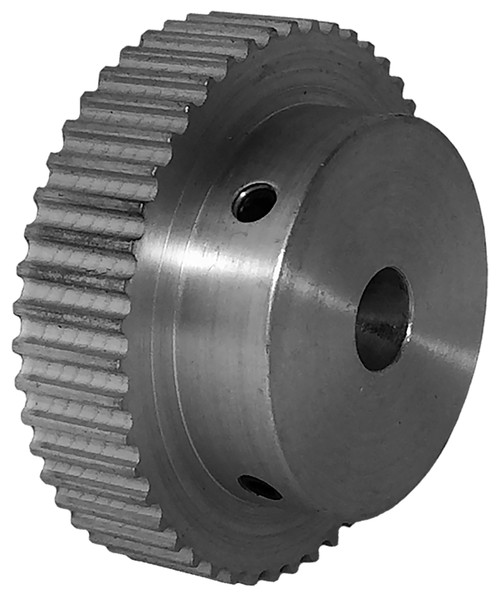

48-3M06M6A8, Timing Pulley, Powerhouse HTD, 8 mm Bore, Aluminum

Our 48-3M06M6A8 Aluminum Powerhouse®HTD® Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 48-3M06M6A8
Teeth 48
Tooth Style HTD 3mm
For Belt Width (mm) 6.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 8.00
Set Screw 2 x M4 @ 90°
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 45.80
O.D. (mm) 45.00
Face Width (mm) 10.30
Overall Length (mm) 18.60
Hub Diameter (mm) 31.80
Weight (lb) 0.15
Part Number Cross Reference 48-3M06M6A8, A 6A23M048NF0608, A6A23M048NF0608
