48-3M09M6A8, Timing Pulley

48-3M09M6A8 - Aluminum Powerhouse®HTD® Pulleys

48-3M09M6A8

Click to Enlarge

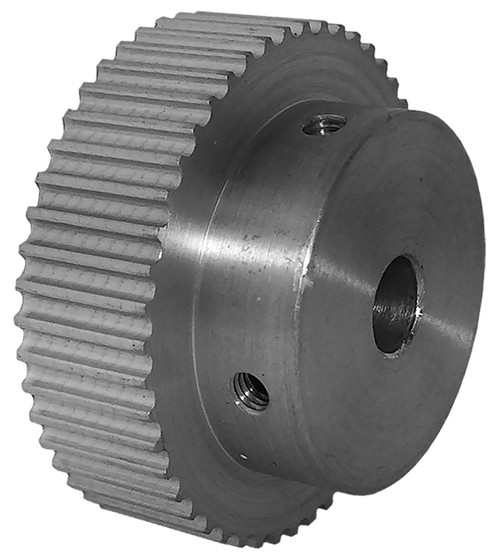

48-3M09M6A8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48-3M09M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48-3M09M6A8
Teeth 48
Tooth Style HTD3mm
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 1.805
Outside Diameter (in) 1.775
Pulley Belt Width (mm) 9.00
Unit System Metric
P.D. (mm) 46.00
O.D. (mm) 45.10
Face Width (mm) 12.70
Overall Length (mm) 22.20
Hub Diameter (mm) 31.80
MOQ 1
Weight (lb) 0.17
Part Number Cross Reference A 6A23M048NF0908, A6A23M048NF0908, 48-3M09M6A8, 48-3M09M6A8
Set Screw Quantity 2
