Product Details for 48-5M15-6A5

Comparable to: 48-5M15-6A5, A 6A25-048NF1512, A6A25-048NF1512, P48-5M-15AL, 78821101

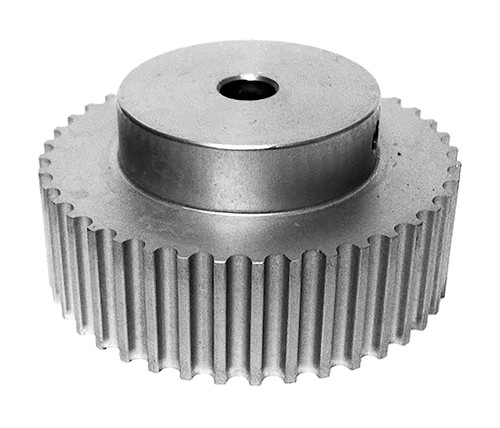

48-5M15-6A5, Timing Pulley, Powerhouse HTD, 3/8 Inch Bore, Aluminum

B&B Manufacturing carries 48-5M15-6A5 Aluminum Powerhouse®HTD® Pulleys in small & large pitches to accomodate various industries. Contact us today for a free quote!

Specifications

Product Number 48-5M15-6A5
Teeth 48
Tooth Style HTD 5mm
For Belt Width (mm) 15.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.963
Face Width (in) 0.781
Overall Length (in) 1.187
Hub Diameter (in) 1.500
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.375
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.48
Part Number Cross Reference 48-5M15-6A5, A 6A25-048NF1512, A6A25-048NF1512, P48-5M-15AL, 78821101
