48-5MX15-1210, Timing Pulley

48-5MX15-1210

Click to Enlarge

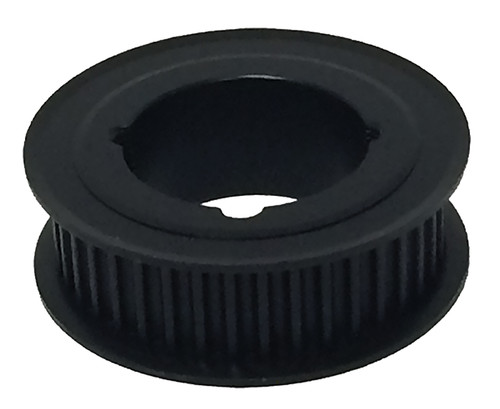

48-5MX15-1210, Timing Pulley, Steel, Black Oxide,

Learn more about 48-5MX15-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	48-5MX15-1210
Teeth	48
Tooth Style	5MX
For Belt Width (mm)	15.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1210 Bushing
Pitch Diameter (in)	3.008
Outside Diameter (in)	2.963
Flange Diameter (in)	3.330
Face Width (in)	0.880
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.710
Unit System	Inch
Bushing	1210
P.D. (mm)	76.00
O.D. (mm)	75.30
MOQ	1
Weight (lb)	1.03
Part Number Cross Reference	48-5MX15-1210, 48-5MX15-1210
