48-5P15-1210 - Steel Powerhouse® Pulleys

48-5P15-1210 - Steel Powerhouse® Pulleys

Product Details for 48-5P15-1210

Comparable to: 48-5P15-1210, P48-5MGT-15, 770910

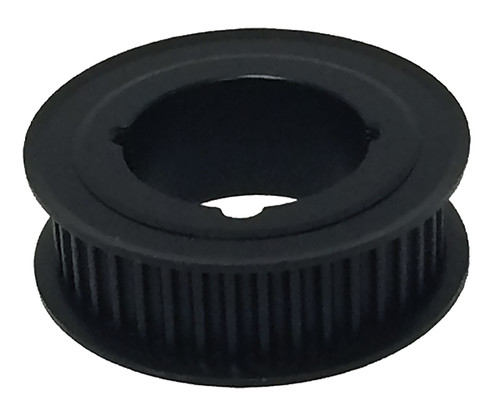

48-5P15-1210, Timing Pulley, Powerhouse, 1210 Bushing, Steel

B&B Manufacturing provides custom 48-5P15-1210 Steel Powerhouse® Pulleys for the diverse range of industies we serve. Request a quote today!


Product Number 48-5P15-1210
Teeth 48
Tooth Style GT 5mm
For Belt Width (mm) 15.000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.963
Flange Diameter (in) 3.330
Face Width (in) 0.880
Overall Length (in) 1.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.710
Unit System Inch
Bushing 1210
Max. Bore (in) 1.250
Weight (lb) 0.97
Part Number Cross Reference 48-5P15-1210, P48-5MGT-15, 770910
