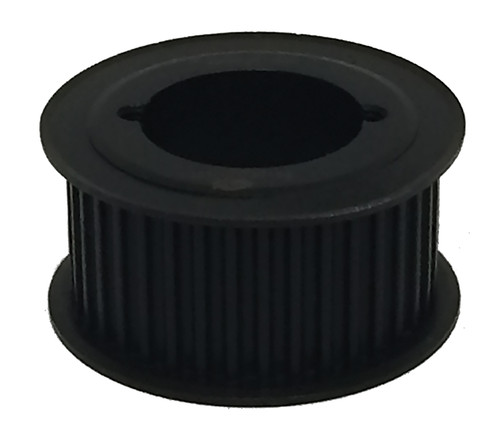

48-5P25-1210, Timing Pulley

48-5P25-1210 - Steel Powerhouse® Pulleys

48-5P25-1210

Click to Enlarge

48-5P25-1210, Timing Pulley, Steel, Black Oxide,

Learn more about 48-5P25-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48-5P25-1210
Teeth 48
Tooth Style 5P
For Belt Width (mm) 25
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.008
Outside Diameter (in) 2.963
Flange Diameter (in) 3.330
Face Width (in) 1.280
Overall Length (in) 1.280
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
Bushing 1210
P.D. (mm) 76.00
O.D. (mm) 75.30
MOQ 1
Weight (lb) 1.26
Part Number Cross Reference P48-5MGT-25, 48-5P25-1210
