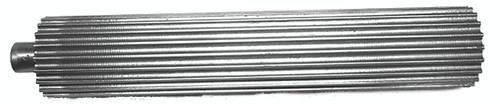

48-8M-PS8S, Timing Pulley Stock

48-8M-PS8S

48-8M-PS8S, Timing Pulley Stock, Steel

Learn more about 48-8M-PS8S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	48-8M-PS8S
Teeth	48
Tooth Style	HTD8mm
Material	Steel
Pitch Diameter (in)	4.812
Outside Diameter (in)	4.758
Overall Length (in)	9.000
Unit System	Inch
Min. Usable Length (in)	8.000
P.D. (mm)	122.20
O.D. (mm)	120.90
MOQ	1
Weight (lb)	41.83
Part Number Cross Reference	48-8M-PS-8S, 48-8M-PS8S, 48-8M-PS8S
Shank Length (in)	1.0000
