48-8MX62-2517, Timing Pulley

48-8MX62-2517 - Cast Iron Powerhouse® MX Pulleys

48-8MX62-2517

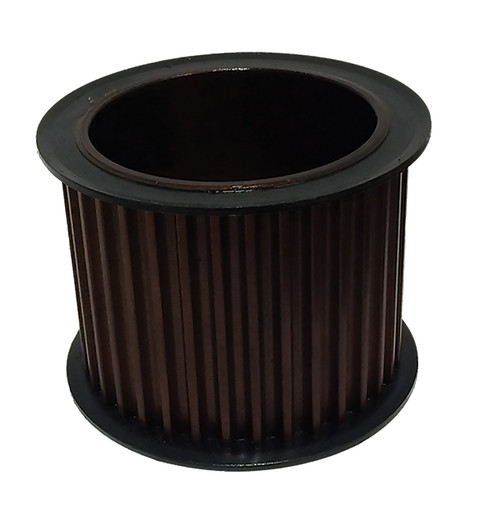

Click to Enlarge

48-8MX62-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 48-8MX62-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48-8MX62-2517
Teeth 48
Tooth Style 8MX
For Belt Width (mm) 62.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2517 Bushing
Pitch Diameter (in) 4.812
Outside Diameter (in) 4.749
Flange Diameter (in) 5.157
Face Width (in) 2.906
Overall Length (in) 2.906
Min. Bore (in) 0.5
Pulley Belt Width (in) 2.670
Unit System Inch
Bushing 2517
P.D. (mm) 122.00
O.D. (mm) 120.60
MOQ 1
Weight (lb) 4.94
Part Number Cross Reference 8MX-48S-62, B8MCS-48-62, 48G-8M-62-2517, 20296081, 8MX-48S-62-2517 HT500 SPKT, 8MPC48S62, 48-8MX62-2517, 482002, 48-8MX62-2517

Comparable to: 8MX-48S-62, B8MCS-48-62, 48G-8M-62-2517, 20296081, 8MX-48S-62-2517 HT500 SPKT, 8MPC48S62, 48-8MX62-2517, 482002, 48-8MX62-2517

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
