480-D5M-15 Powerhouse™ HTD® Belts

480-D5M-15, A 6R25MD096150, A6R25MD096150, TP480-5M-15

Product Details for 480-D5M-15

Comparable to: 480-D5M-15, A 6R25MD096150, A6R25MD096150, TP480-5M-15

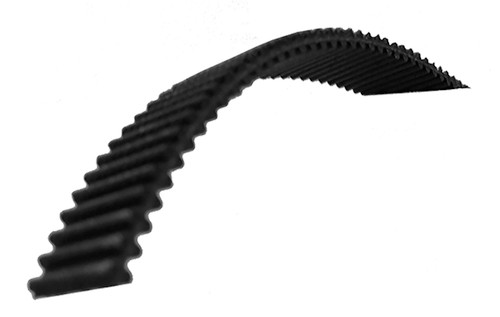

480-D5M-15, Timing Belt, Powerhouse HTD, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 480-D5M-15
Teeth 96
Tooth Style HTD 5mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 15.00
Pitch Length (mm) 480.00
Construction Neoprene
Reinforcement Fiberglass
Part Number Cross Reference 480-D5M-15, A 6R25MD096150, A6R25MD096150, TP480-5M-15

Documentation

Download Catalog 2015_BBMAN_CATALOG_224.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 480-D5M-15_REACH_cert
RoHS Certification 480-D5M-15_RoHS_cert
