48HQ150, Timing Pulley

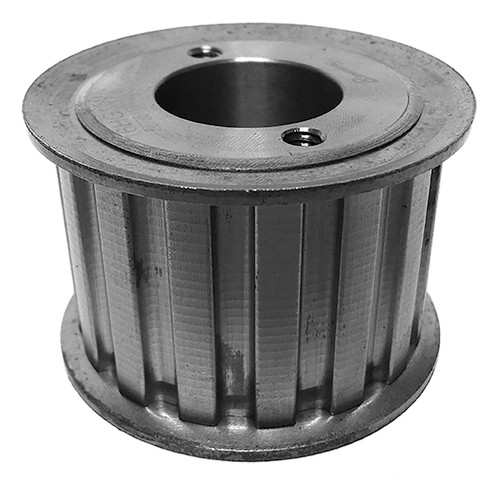

48HQ150 - Cast Iron Imperial Pitch Pulleys

48HQ150

48HQ150 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

48HQ150, Timing Pulley, Cast Iron

Learn more about 48HQ150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48HQ150
Teeth 48
Tooth Style H
For Belt Width (in) 1.5000
Type 7
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 7.639
Outside Diameter (in) 7.585
Flange Diameter (in) 7.875
Face Width (in) 1.750
Overall Length (in) 2.781
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 194.00
O.D. (mm) 192.70
MOQ 1
Weight (lb) 17.94
Part Number Cross Reference 48HQ150, 48HQ150, 48HQ150
