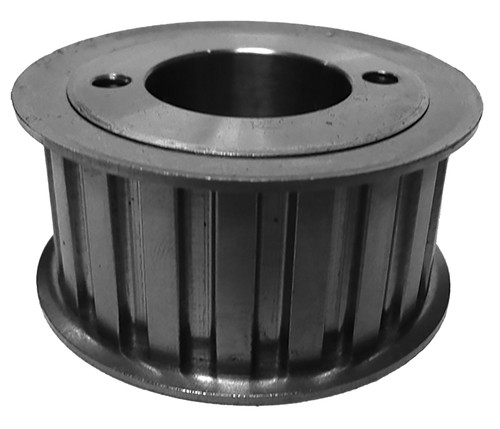

48LP100, Timing Pulley

48LP100 - Cast Iron Imperial Pitch Pulleys

48LP100

48LP100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

48LP100, Timing Pulley, Cast Iron

Learn more about 48LP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48LP100
Teeth 48
Tooth Style L
For Belt Width (in) 1.0000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 5.730
Outside Diameter (in) 5.700
Flange Diameter (in) 6.000
Face Width (in) 1.250
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 146.00
O.D. (mm) 144.80
MOQ 1
Weight (lb) 7.25
Part Number Cross Reference 48LP100, 48LP100
