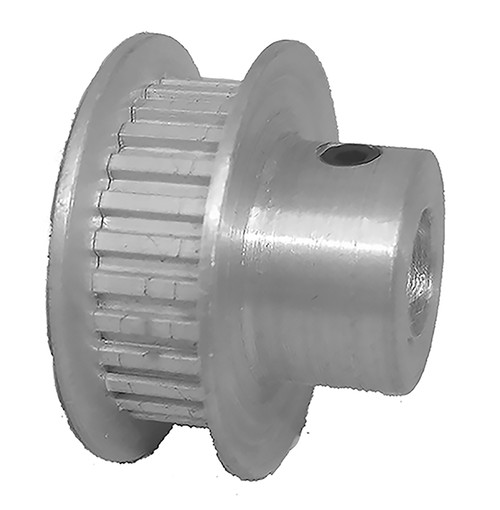

48LT187-6FA3, Timing Pulley

48LT187-6FA3 - Aluminum Imperial Pitch Pulleys

48LT187-6FA3

48LT187-6FA3 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

48LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48LT187-6FA3
Teeth 48
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.247
Outside Diameter (in) 1.227
Flange Diameter (in) 1.420
Face Width (in) 0.340
Overall Length (in) 0.656
Hub Diameter (in) 0.933
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 31.20
MOQ 1
Weight (lb) 0.10
Part Number Cross Reference A 6A6-48DF01808, A6A6-48DF01808, PT048C08L02T, 48M187-1A X 1/4, 48LT187-6FA3
Set Screw Quantity 2
