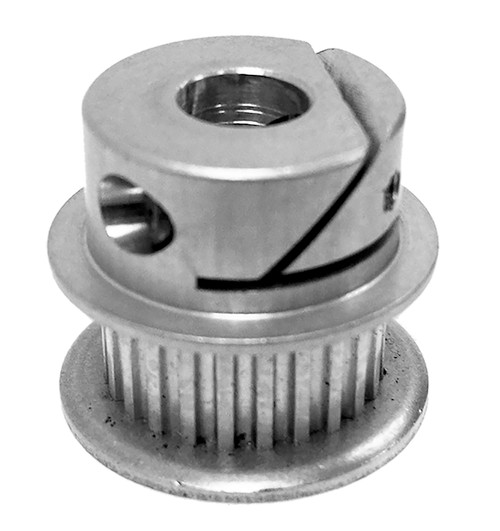

48MP025-IA3, Timing Pulley

48MP025-IA3 - E-Z Lock Hub Aluminum Imperial Pitch Pulleys

Product Details for 48MP025-IA3

Comparable to: 48MP025-IA3, A 6D16-048DF2508, A6D16-048DF2508

48MP025-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48MP025-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48MP025-IA3
Teeth 48
Tooth Style MXL
For Belt Width (in) 0.250
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.222
Outside Diameter (in) 1.202
Flange Diameter (in) 1.420
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.750
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.25
Number & Screw Size 1 x 4-40
Weight (lb) 0.10
Part Number Cross Reference 48MP025-IA3, A 6D16-048DF2508, A6D16-048DF2508
