48T10-PS160A, Timing Pulley Stock

48T10-PS160A, A6A38M048T16, A 6A38M048T16, 48T10-PS-160

48T10-PS160A

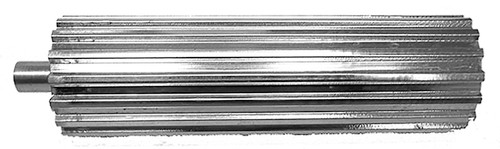

48T10-PS160A, Timing Pulley Stock, Aluminum

Learn more about 48T10-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 48T10-PS160A
Teeth 48
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 6.022
Outside Diameter (in) 5.943
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 153.00
O.D. (mm) 151.00
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 17.75
Part Number Cross Reference A 6A38M048T16, A6A38M048T16, T10-48S-PS-160A, 48T10-PS-160A, T1048, 48T10-PS160A, 48T10-PS160A
Shank Length (in) 1.0000

Comparable to: A 6A38M048T16, A6A38M048T16, T10-48S-PS-160A, 48T10-PS-160A, T1048, 48T10-PS160A, 48T10-PS160A
