48V1600F, V-Belt Pulley

48V1600F, QD4/8V16.

48V1600F

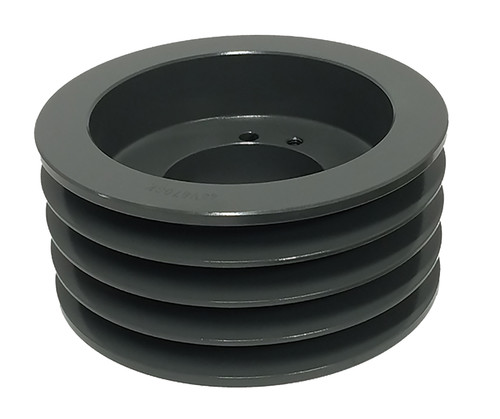

48V1600F, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 48V1600F to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 48V1600F
Type D-3
Material Cast Iron
Bore Type QD
Pitch Diameter (in) 15.800
Outside Diameter (in) 16.000
Face Width (in) 4.875
Min. Bore (in) 1.000
Unit System Inch
Bushing F
E (in) 5/32
L (in) 3 3/4
M (in) 1 9/32
MOQ 1
Weight (lb) 96.00
Part Number Cross Reference QD4/8V16.00, 4 8V 1600 F, 4-8V1600.F, 8V16.0-4-F PULLEY, 20180949, 4/8V16.0–F, 48V16.0, 8V16.0-4-F, 4/8V1600F, 455420, 48V1600F
Grooves 4

Related Products

Comparable to: QD4/8V16.00, 4 8V 1600 F, 4-8V1600.F, 8V16.0-4-F PULLEY, 20180949, 4/8V16.0–F, 48V16.0, 8V16.0-4-F, 4/8V1600F, 455420, 48V1600F
