48V2480M, V-Belt Pulley

48V2480M, QD4/8V24.

48V2480M

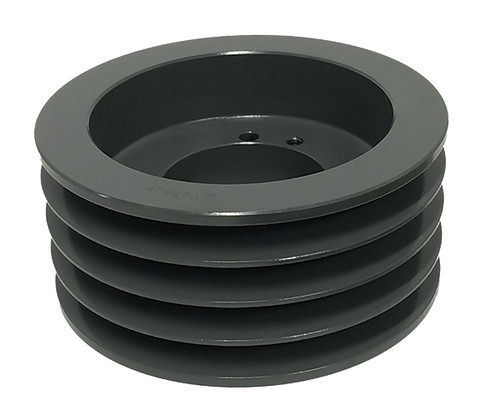

48V2480M, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 48V2480M to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	48V2480M
Type	C-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for M Bushing
Pitch Diameter (in)	24.600
Outside Diameter (in)	24.800
Face Width (in)	4.875
Min. Bore (in)	2
Unit System	Inch
Bushing	M
E (in)	0.7812
L (in)	6.75
M (in)	1.09375
MOQ	1
Sheave Type	8V
For Belt Type	8V
Weight (lb)	176.00
Part Number Cross Reference	QD4/8V24.80, 4 8V 2480 M, 4-8V2480.M, 8V24.8-4-M PULLEY, 20180991, 4/8V24.8–M, 48V24.8, 8V24.8-4-M, 4/8V2480M, 456654, 48V2480M
Grooves	4

Related Products

Comparable to: QD4/8V24.80, 4 8V 2480 M, 4-8V2480.M, 8V24.8-4-M PULLEY, 20180991, 4/8V24.8–M, 48V24.8, 8V24.8-4-M, 4/8V2480M, 456654, 48V2480M
