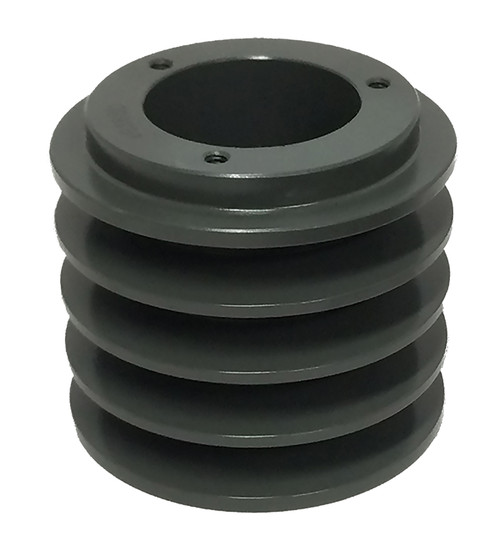

4B64SD, V-Belt Pulley

4B64SD

4B64SD, V-Belt Pulley, Cast Iron

Learn more about 4B64SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	4B64SD
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SD Bushing
Outside Diameter (in)	6.750
Face Width (in)	3.250
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SD
MOQ	1
Pitch Dia. "A"	6.000
Pitch Dia. "B"	6.400
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	12.00
Part Number Cross Reference	QD4A6.2/B6.4, 4B64.SD, 4B64SD, 6.4-4B-SD, 20179391, 4B64-SD SHEAVE, 644B, 4B6.4, 6.4-4B-SD, 4/B640SD, 82245762, 4B64, 4BQ64, 4B64SD, 4B64SD, 455657, 4B64SD
Grooves	4
