4C240F, V-Belt Pulley

4C240F, QD4C24

4C240F

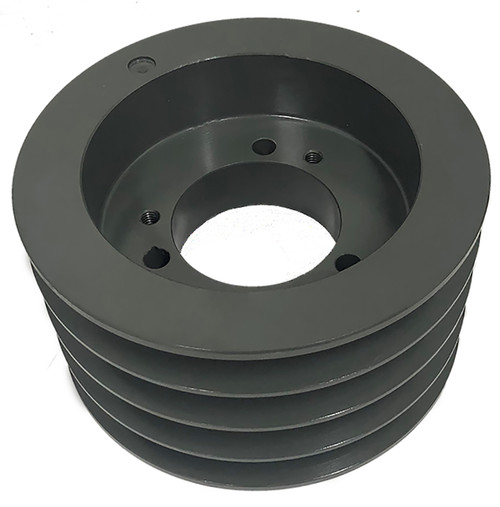

4C240F, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 4C240F to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 4C240F
Type D-3
Material Cast Iron
Bore Type QD
Outside Diameter (in) 24.400
Face Width (in) 4.250
Min. Bore (in) 1.000
Unit System Inch
Bushing F
L (in) 3.750
MOQ 1
Weight (lb) 100.40
Part Number Cross Reference QD4C24.0, 4C240.F, 24.0-4C-F PULLEY, 20179159, 4C24.0, 4/C2400F, 4C240F
Grooves 4

Related Products

Comparable to: QD4C24.0, 4C240.F, 24.0-4C-F PULLEY, 20179159, 4C24.0, 4/C2400F, 4C240F

Documentation

For custom parts click here
REACH Certification
RoHS Certification
