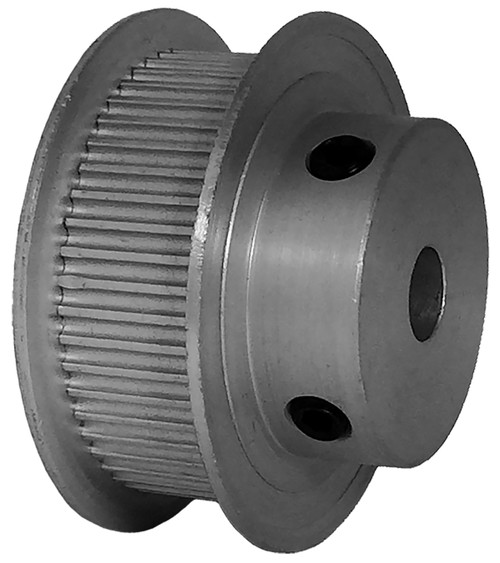

50-2P09-6FA3, Timing Pulley

50-2P09-6FA3 - Aluminum Powerhouse® Pulleys

50-2P09-6FA3

Click to Enlarge

50-2P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50-2P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-2P09-6FA3
Teeth 50
Tooth Style 2P
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.253
Outside Diameter (in) 1.233
Flange Diameter (in) 1.470
Face Width (in) 0.530
Overall Length (in) 0.843
Hub Diameter (in) 0.936
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.410
Unit System Inch
Belt Width (mm) 10.40
P.D. (mm) 32.00
O.D. (mm) 31.30
Flange Diameter (mm) 37.30
Face Width (mm) 13.10
Overall Length (mm) 21.40
Hub Diameter (mm) 23.80
MOQ 1
Weight (lb) 0.13
Part Number Cross Reference A 6A51-050DF0908, A6A51-050DF0908, 2MR-50S-09, 2MR-50S-09, TP2A3W9-50, 50-2GT06-1A X 1/4, 50-2P09-6FA3, 50-2P09-6FA3
Set Screw Quantity 2

Comparable to: A 6A51-050DF0908, A6A51-050DF0908, 2MR-50S-09, 2MR-50S-09, TP2A3W9-50, 50-2GT06-1A X 1/4, 50-2P09-6FA3, 50-2P09-6FA3
