50-3P09-6A4, Timing Pulley

50-3P09-6A4 - Aluminum Powerhouse® Pulleys

50-3P09-6A4

Click to Enlarge

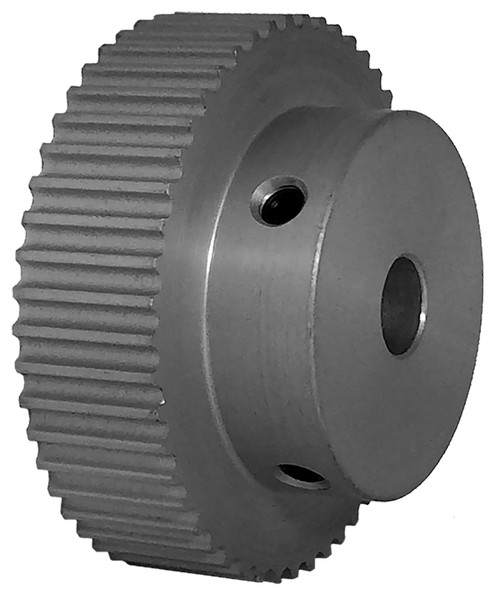

50-3P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50-3P09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-3P09-6A4
Teeth 50
Tooth Style 3P
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 1.880
Outside Diameter (in) 1.850
Face Width (in) 0.500
Overall Length (in) 0.875
Hub Diameter (in) 1.250
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 48.00
O.D. (mm) 47.00
MOQ 1
Weight (lb) 0.17
Part Number Cross Reference A 6A53-050NF0910, A6A53-050NF0910, 3MR-50S-09, 3MR-50S-09 6, TP3A3H9-50, 50-3GT09-2A X 5/16, 50-3P09-6A4, 50-3P09-6A4
Set Screw Quantity 2

Comparable to: A 6A53-050NF0910, A6A53-050NF0910, 3MR-50S-09, 3MR-50S-09 6, TP3A3H9-50, 50-3GT09-2A X 5/16, 50-3P09-6A4, 50-3P09-6A4
